These are the latest generation of robust, industrial rectifiers, chargers and DC Systems from AEG Power Solutions. Using proven microprocessor controlled thyristor technology to provide high-reliability power supply and battery charging capabilities. Choose from standard system configurations or customized systems, designed to comply with precise specifications.

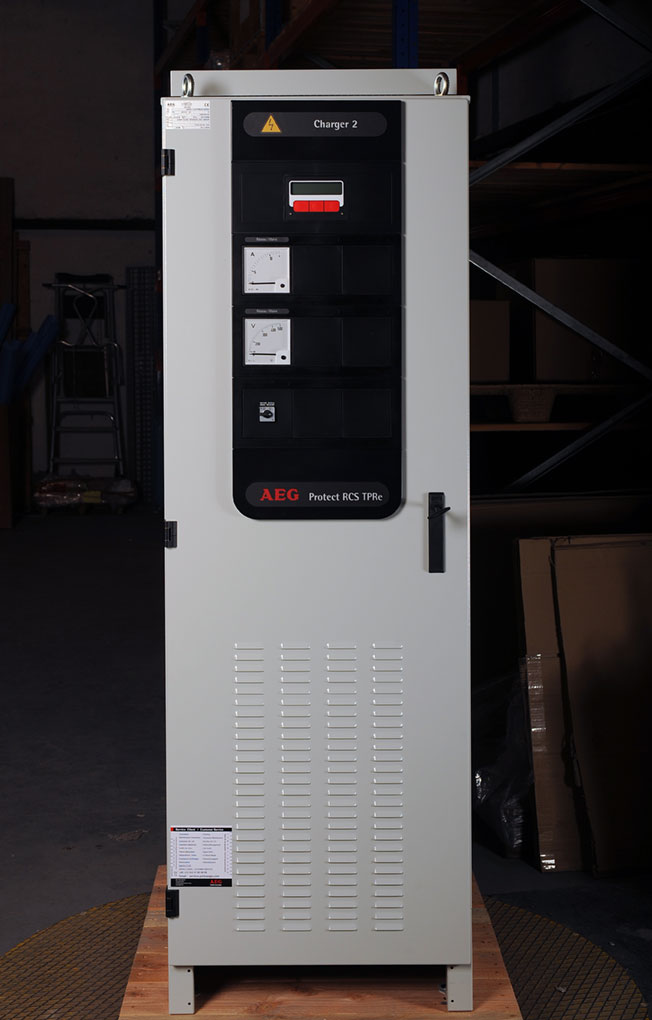

Protect RCS outdoor IP65
Protect RCS outdoor IP65
Input 1-Phase: 220/230/240 VAC
Input 3-Phase: 380/400/415/480VAC
Output :
24V DC, 25-1000A
48V DC, 25-1000A
110V DC, 25-1000A
220V DC, 25A-1000A
Key Features
Standard or customized systems - enhanced by an extensive range of options
Generic Control and Alarm Unit
Monitor and control parameters locally/ remotely
Several types of batteries:
Nickel-cadmium (vented/ gas recombination)
Lead acid (vented/ gas recombination)
Parallel operation
High MTBF, low MTTR
Can also be used as direct power supply
Application:
Power & Utility, Industrial, Oil&Gas, Offshore/Outdoor application

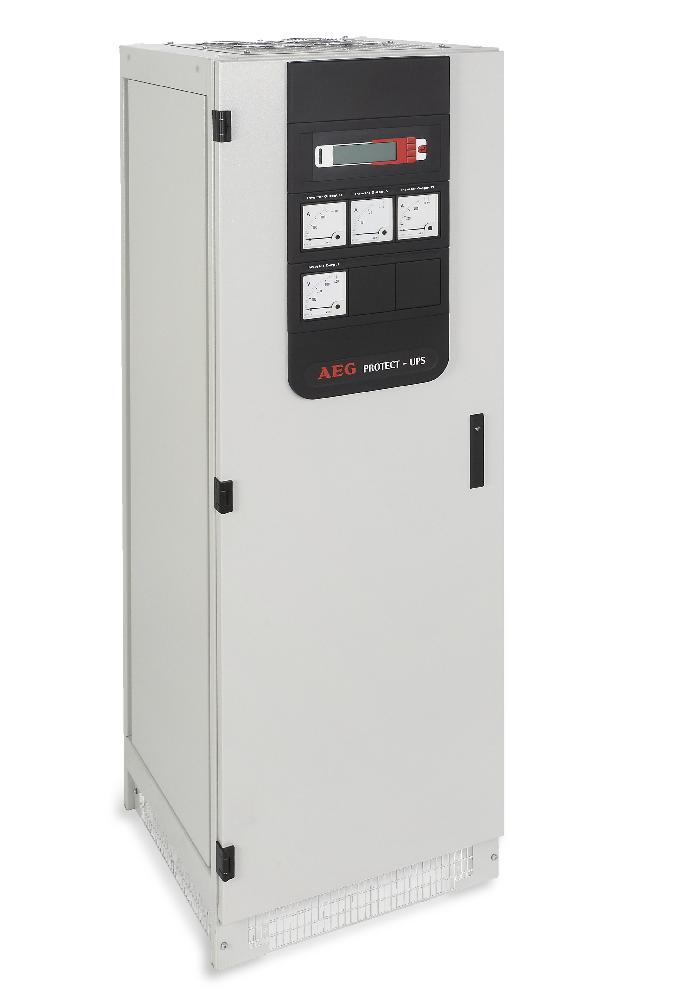

PROTECT 8- INDUSTRIAL UPS
UPS RANGE :-
1-PHASE OUTPUT- 5KVA -100KVA
3-PHASE OUTPUT- 20KVA -500KVA
Protect 8 is designed to meet the toughest product customization requirements for specific mechanical protection degree, input & output voltage, battery and autonomy times and comes with the desired documentation. Benefit from a guaranteed short lead time, extremely high electrical and mechanical robustness, high reliability and a small footprint.

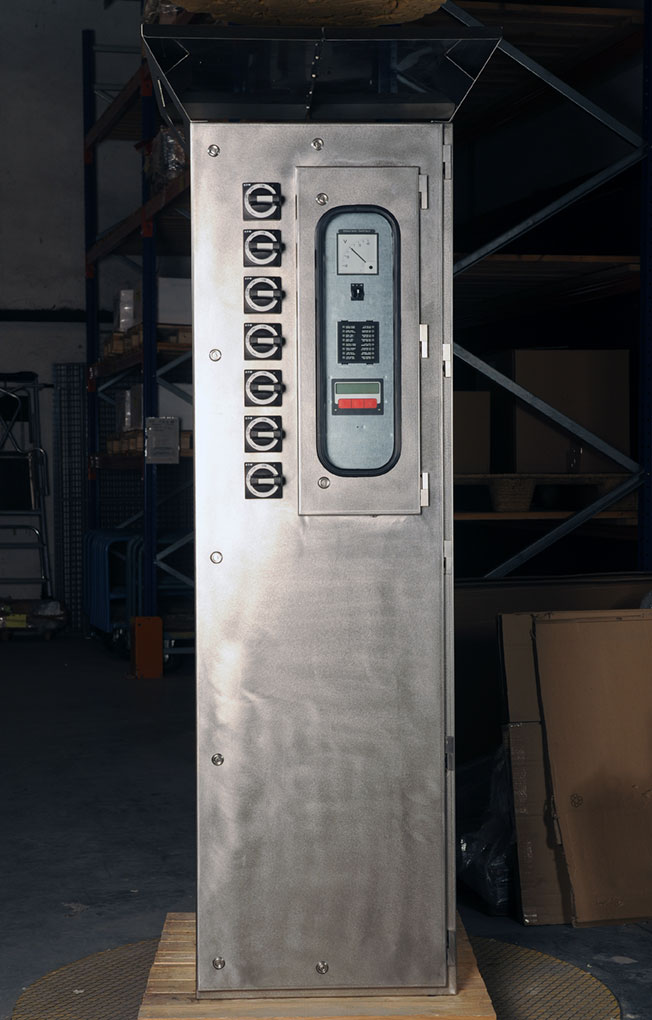

Protect RCS outdoor IP65

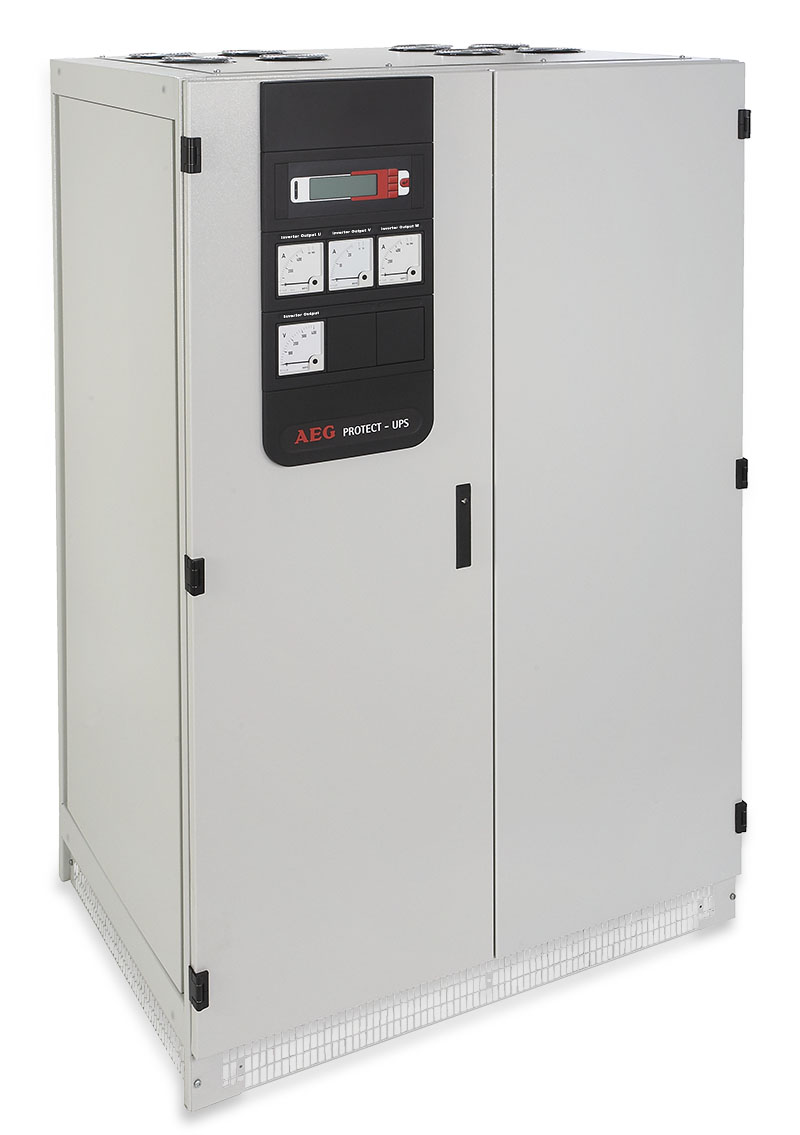

AEG Protect Industrial UPS
Key Features
High and constant efficiency even at low output power
Higher reliability, MTBF and overload capacity through oversized components
Redundant controls for high reliability:
Separate microprocessors for rectifier, inverter, static switch and communication
Separate, redundant power supplies for control cards
Input isolation transformer
High short-circuit resistance
High EMC robustness compared to UPS Standard IEC 62040-2 by a factor of 2-to-3
Redundant and individually monitored fans
Intelligent battery management, test and status diagnostics
Compatible with all battery types
Full digital control
Designed to operate with diesel generators
Application:
Oil & Gas (Petrochemicals Offshore, Onshore, Pipelines) , Energy & Electricity generation (Power Generation, Transmission, Distribution), Water (Desalination, Treatment), Instrumentation & Process Control (Chemicals, Mining, Steel, Paper) , Emergency Lighting , All Industrial Applications
HE/HPI UPS SYSTEM –COMMERCIAL UPS
UPS RANGE:-
UPS RANGE 1-PHASE 10KVA -20KVA
UPS RANGE 3-PHASE 60KVA - 300 KVA
UPS system HPI combines management of THD and power factor, low cost of ownership and power protection in a highly reliable solution guaranteed by the most advanced technology. The HPI model UPS uses a completely new IGBT input rectifier design, encompassing an advanced PFC (Power Factor Control) which is capable of keeping input current THDi (Total Harmonic Distortion) at a level of less than 3 % and input power factor within 1 % of unity, even when only small loads are applied. The key benefits are that the UPS is compatible with the upstream source, the mains or any kind of generator and the transfer of power between source and load is more efficient. This results in a saving in terms of scale of sources, cables and protective devices.
HE/HPI UPS System –Commercial UPS
Application
Data centre
Power & Utility
Hospital
Emergency Lighting
BAE stationary batteries are used wherever perfect reliable power supply has to be ensured, both for a few seconds and for hours. Typical applications are Uninterrupted Power Supply (UPS) – systems as to be found in data centers, telecommunication installations or hospitals and airports. Further applications are backup systems used in power plants or industry and infrastructure systems.

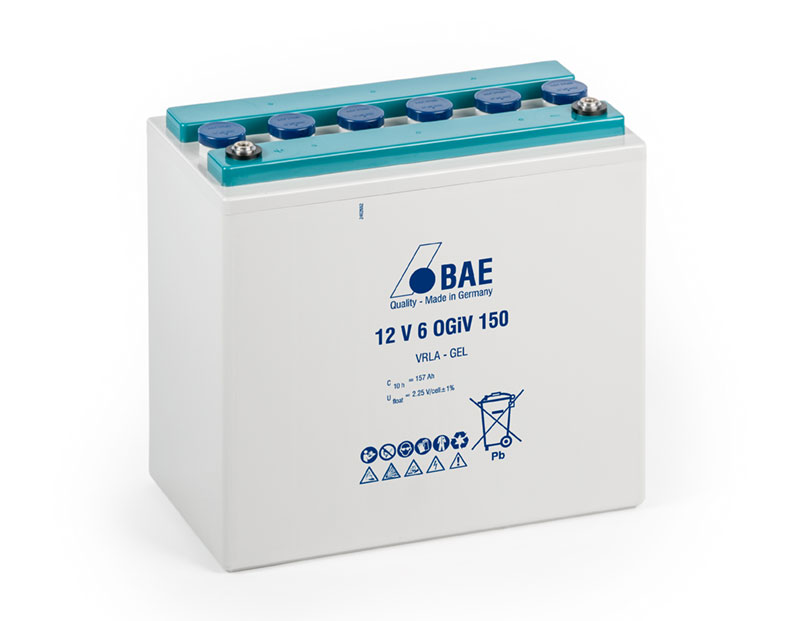

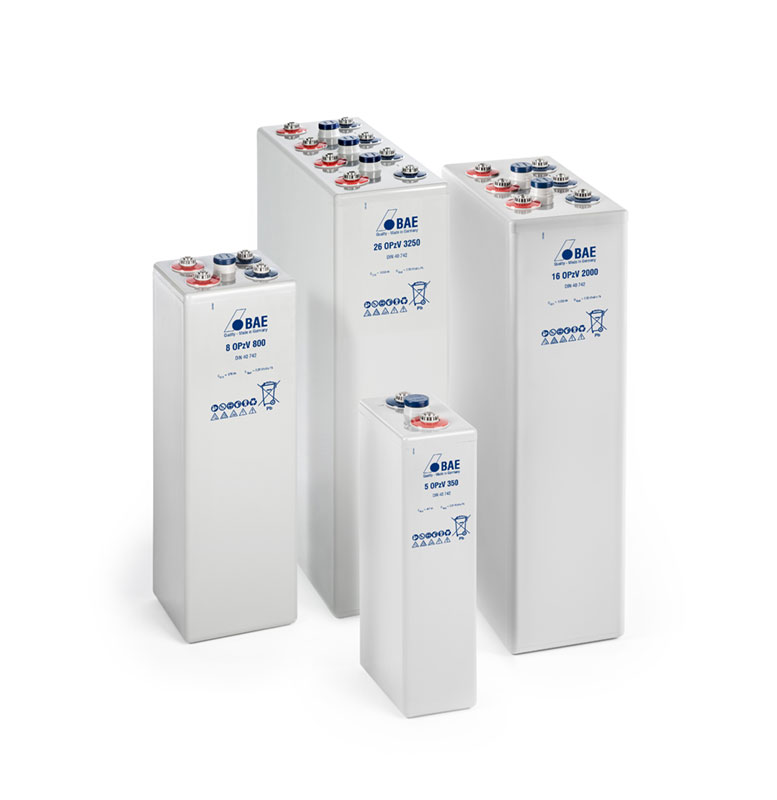

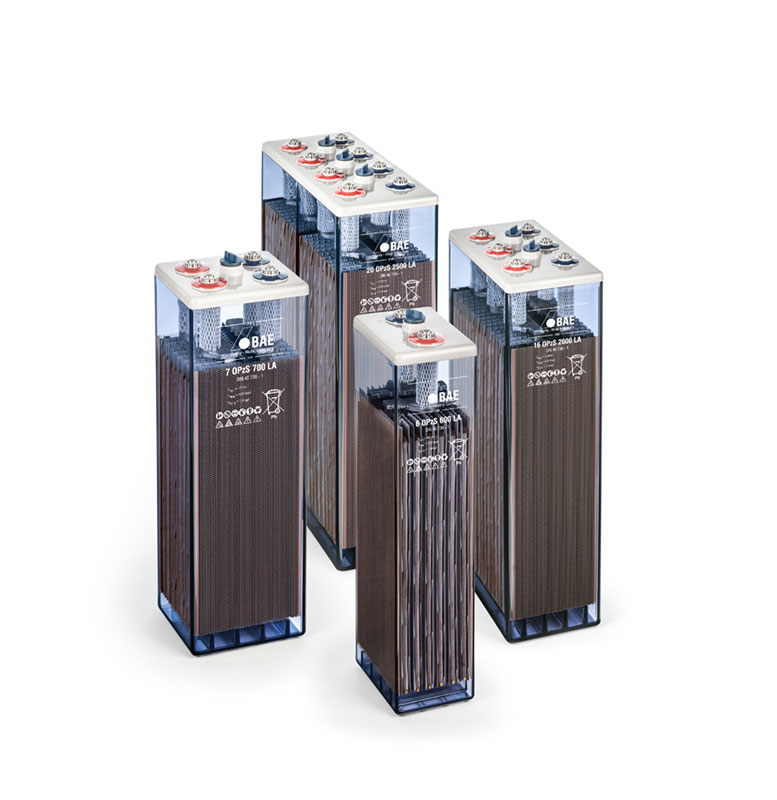

BAE stationary batteries are available in low maintenance VLA and maintenance free VRLA-GEL design. For high current applications, batteries with positive grid plates (OGi or OGiV) are used. In applications which require long term discharges and/or high cycle life, batteries with positive tubular plates (OPzS or OPzV) are used.
